◆ Adopt Italy technology to design
◆ Hydraulic balance system and mechanical safety with automatic unlock are equipped
◆ 24V safety control circuit
◆ 8 cylinders, double hydraulic balance system(main lift)and mechanical safety with automatic unlock are equipped
◆ Components are made by laser cutting machine or other CNC equipment

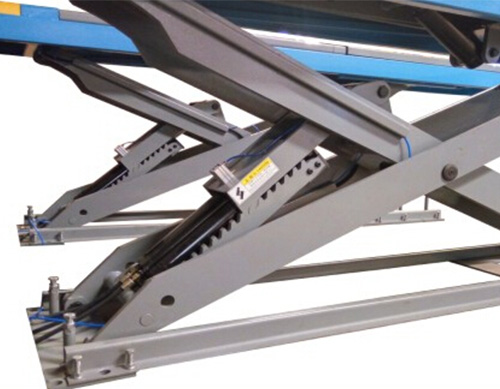

◆ Alloy solid steel X structure, good rust resistance and not easy to deformation
Product Features
·Adopt Italy technology to design

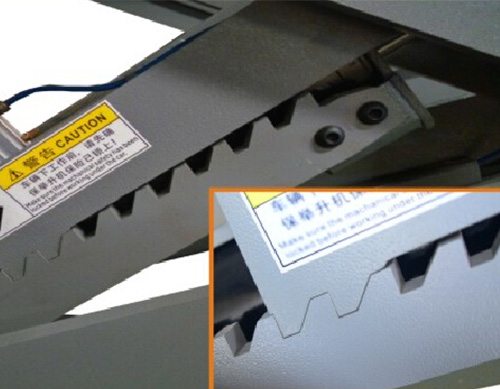

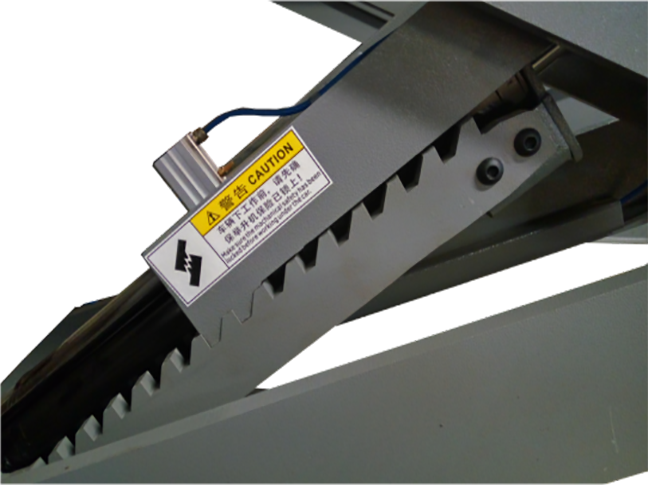

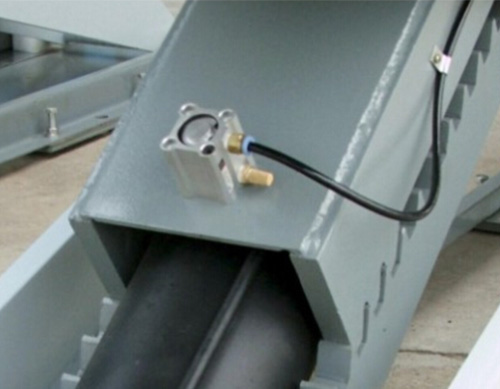

·Hydraulic balance system and mechanical safety with automatic unlock are equipped
·24V safety control circuit

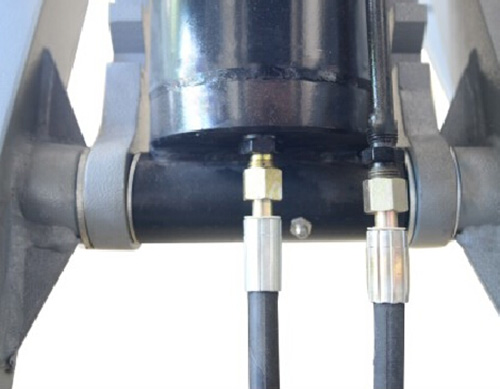

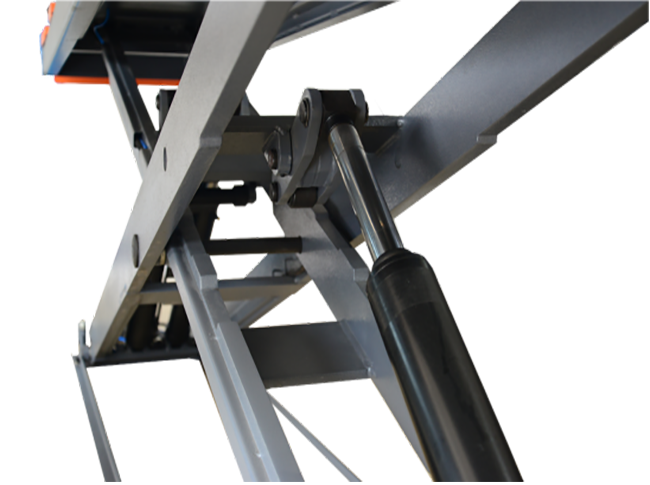

·Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity

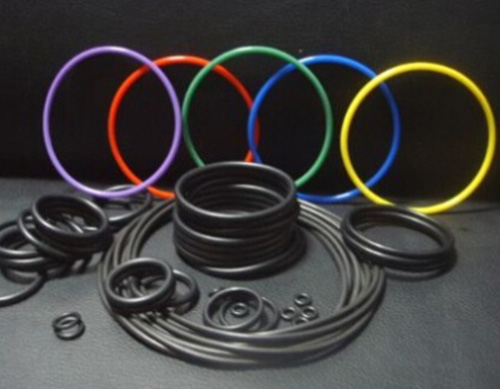

·Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device, overload
protection, international brand oil pipe
·Components are made by laser cutting machine or other CNC equipment
·Solid steel X structure, good rust resistance and not easy to deformation
·Shot blasting and high temperature baking powder coated surface finish

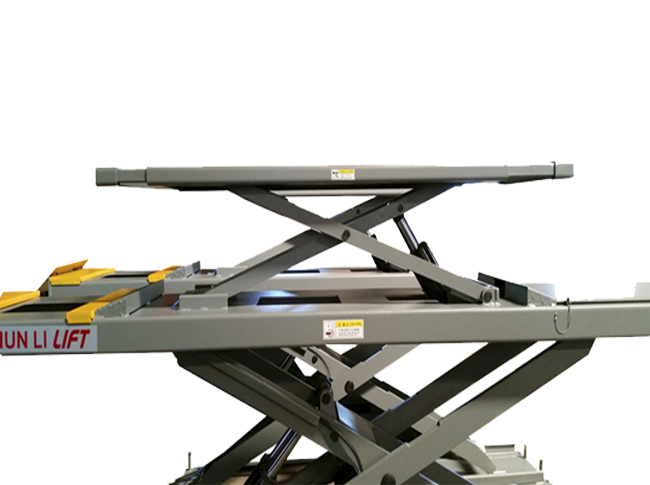

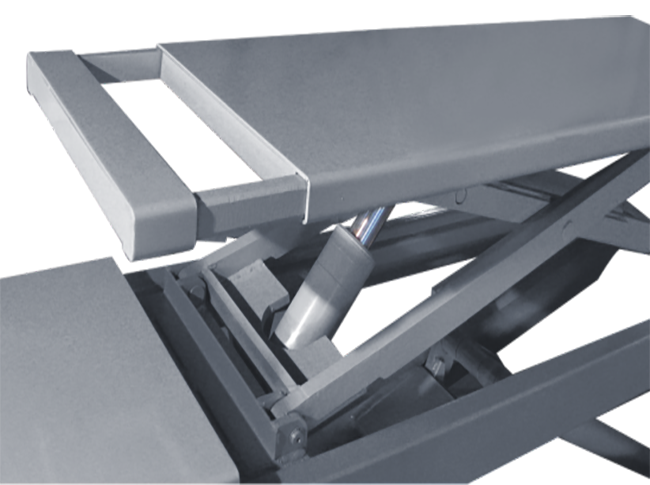

·Second-level extensible platform

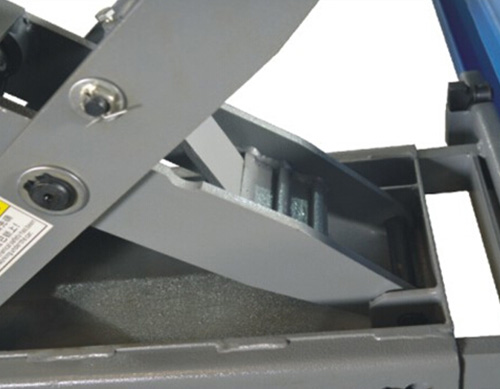

·Wear-resisting bearings, polymer wear-resistance slider
·Infra-red electronic leveling sensor, anti presser foot device
Model | CD35T | FOB Guangzhou price | 3330 USD |
Air Pressure | 0.4-0.6mpa | Main lift Platform Width | 625mm |
Capacity of Main Lift | 3500kg | Sub-lift Platform Length | 1400mm |
Main Lift Lifting Height | 1850mm | Sub-lift Platform Width | 570mm |
Sub-lift Lifting Height | 500mm | Motor | 380v/220v |
Main lift Platform Length | 4500mm | Power | 3kw |
